Deterministic Multi-Agent Simulation

Introduction

This post contains some of the details from my exam report. The full report can be read here, the application can be downloaded here.

Key systems:

• Deterministic AI
• Seed spawning
• Playback

Purpose

The purpose of this project is to design and implement a deterministic multi-agent simulation system that produces complex interactions without relying on randomness. The project also aims to explore how playback tools such as rewind, fast-forward, time-skipping, and save/load can be integrated into a deterministic environment to enable accurate reproduction of simulation states across different sessions.

Inspiration

I once made a simple traffic system in Unreal and it was very fun to get it working. I’ve also been wanting to simulate a giant galactic economy for future space games I plan to make. I’ve was also inspired by the Youtube channel Primer and ant simulation videos like this one. The idea for large scale simulation has been something I’ve been thinking about since I first learned programming. The idea to make it deterministic came after listening to a podcast. In the podcast the developer talked about how he had built a custom deterministic physics system in Unity, including how this automatically gave him the framework for a replay system, bug replication and many other perks.

Questions

How can a deterministic simulation system with multi-agent interactions be built to support fully reproducible playback features such as rewind, fast-forward, and time-skipping?

Limitations

The simulation will focus on simplified agent behavior and interactions, not on full economic or galactic-scale depth. Visual presentation will be minimal; the core priority is system behavior and determinism. Networking, parallel processing, and distributed simulation will not be implemented.

Simulation

Implementation

Frame independence

Note: When I’m using the word “frame” in this report I’m not referring to the drawn frames of the engine. I’m referring to each step simulated by the simulation system.

The way to determinism:

Handler.cs is intended to replace Unity’s built-in Update() method. Object.cs is the class that represents the agents, it’s attached to every game object you see in the scene.

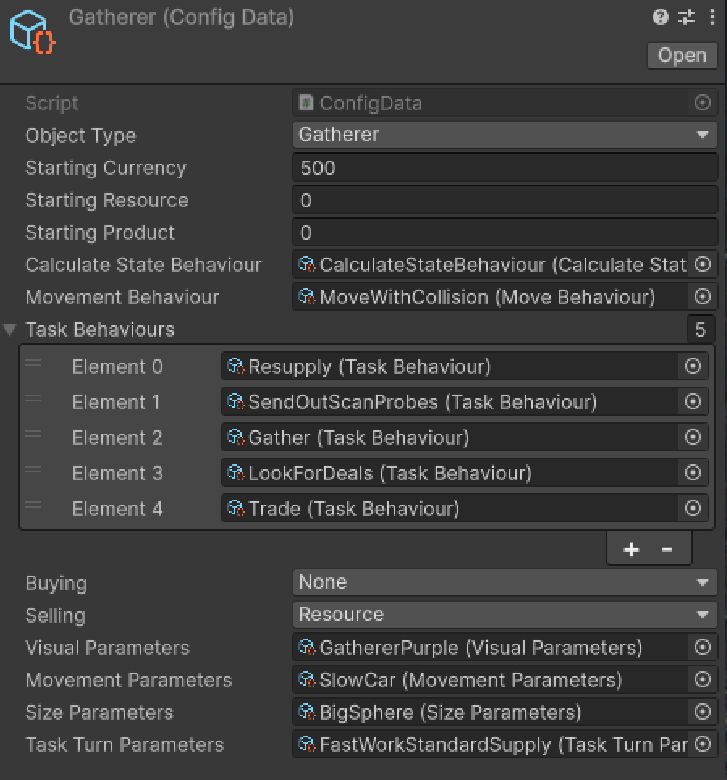

Handler.cs contains the variables current frame, target frame and a pool of all agents. When the target frame is increased by 1 it will loop through each agent, calling the method NextFrame() on it. Object.cs contains the agent’s current state, stats and configuration. Based on its state and configuration the agent calls the corresponding Behaviour. Once all agents have been looped through Handler.cs will update its current frame by +1.

private void SendFrame()
{
	List<Object> currentObjects = new(activeObjects);
	foreach (Object obj in currentObjects)
	{
		obj.GoToFrame(currentFrame);
	}

	List<Object> currentDataObjects = new(activeDataObjects);
	foreach (Object obj in currentDataObjects)
	{
		obj.GoToFrame(currentFrame);
	}
}

    public void GoToFrame(int frame)
    {
        if (frame == objectStats.localFrame)
        {
            return;
        }

        Behaviours();

        RefreshLineRenderers();
    }

Agent Behaviours

The behaviours are sorted in lists for each agent state. When the behavior is being performed the logic will also check if it should continue the current behavior, in the case of movement, if the target is within range it will let the agent know that the current behavior is done and the agent will move on to the next behaviour in its configuration. Many types share behaviours, like movement, trade, scan etc..

Conclusion
